LP30SD-14: VHF/UHF Log Periodic Antenna (30 - 1000 MHz)

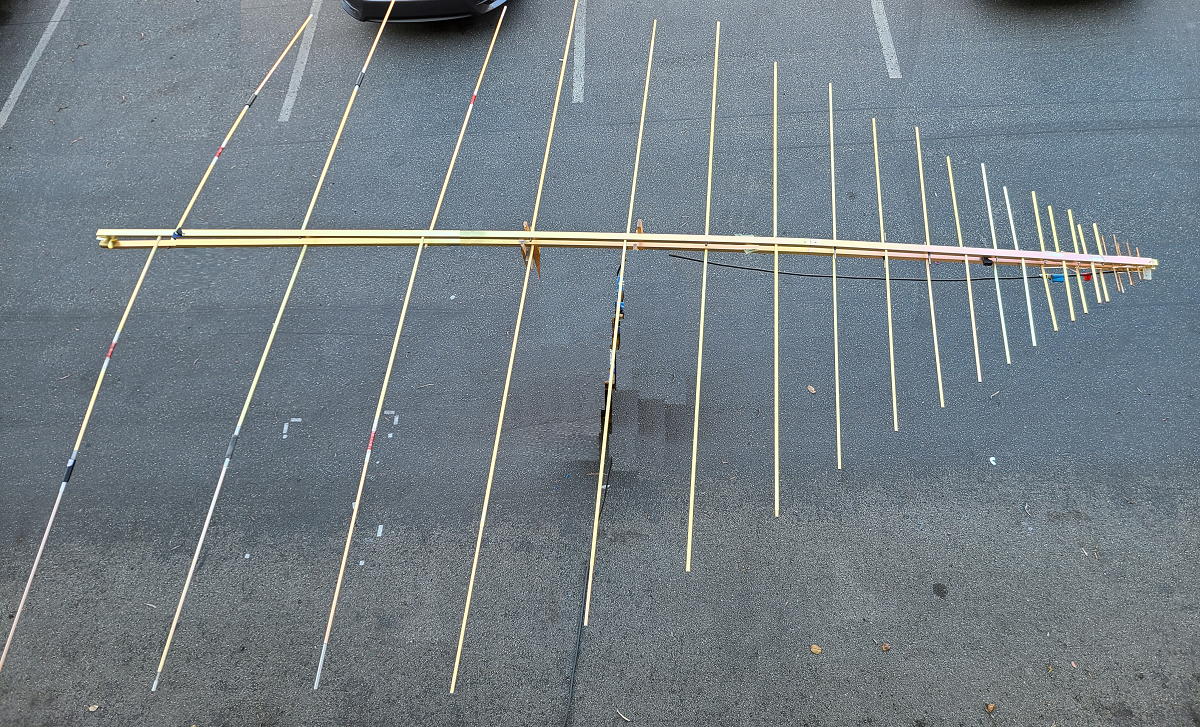

LP30SD-14: VHF/UHF Band Log Periodic Dipole Array (LPDA) Antenna with 7.0 dBi gain supporting very wide frequency band (30 - 1000 MHz). SAS proprietary end loadings on longest dipole elements are used to minimize the overall width of the antenna. Applications and uses include:

  • EMC Test application as receiving antenna for Radiated Emissions (RE) tests, or as a transmitting antenna for Radiated Immunity (RI) tests.
  • EW and spectrum monitoring
  • Broadband transmission/reception

Optional mounting configuratons are avalialbe upon request.

Related Files

Model Connector Frequency Gain Size VSWR Polarization
LP30SD-14 N-type Female 30 - 1000 MHz 7.0 dBI 10 x 12 ft 2.5:1 Linear (V or H)

Price: Call for pricing
