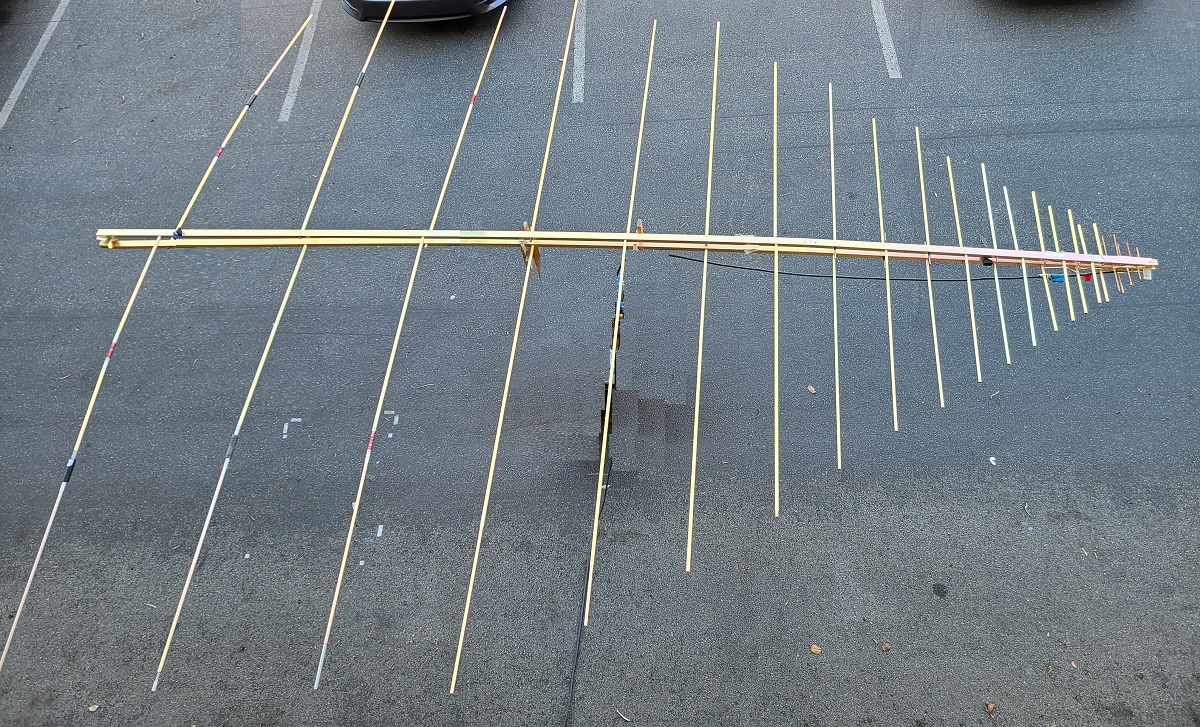

LP20SD-19: VHF/UHF Log Periodic Antenna (20-1000 MHz)

LP20SD-19: VHF/UHF Band Log Periodic Dipole Array (LPDA) Antenna with 7.0 dBi gain supporting very wide frequency band (20 - 1000 MHz). SAS proprietary end loadings on longest dipole elements are used to minimize the overall width of the antenna. Applications and uses include:

  • EMC Test application as receiving antenna for Radiated Emissions (RE) tests, or as a transmitting antenna for Radiated Immunity (RI) tests.
  • EW and spectrum monitoring
  • Broadband transmission/reception

Optional mounting configuratons are avalialbe upon request.


Related Files

Model Connector Frequency Gain Size VSWR Polarization
LP20SD-19 N-type Female 20 - 1000 MHz +7 dBi 13 x 18 ft 2.5:1 Linear (V or H)

Price: Call for pricing
